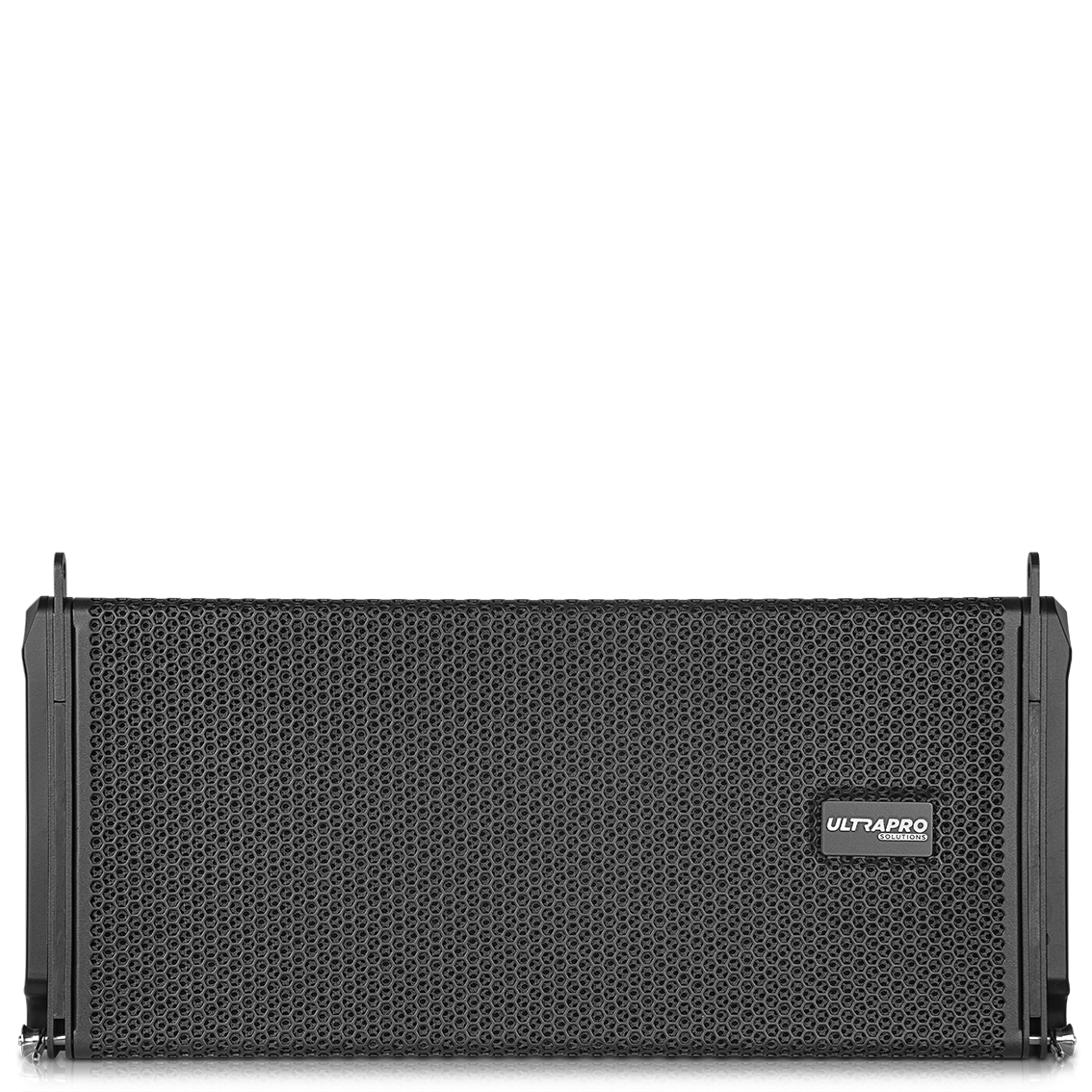

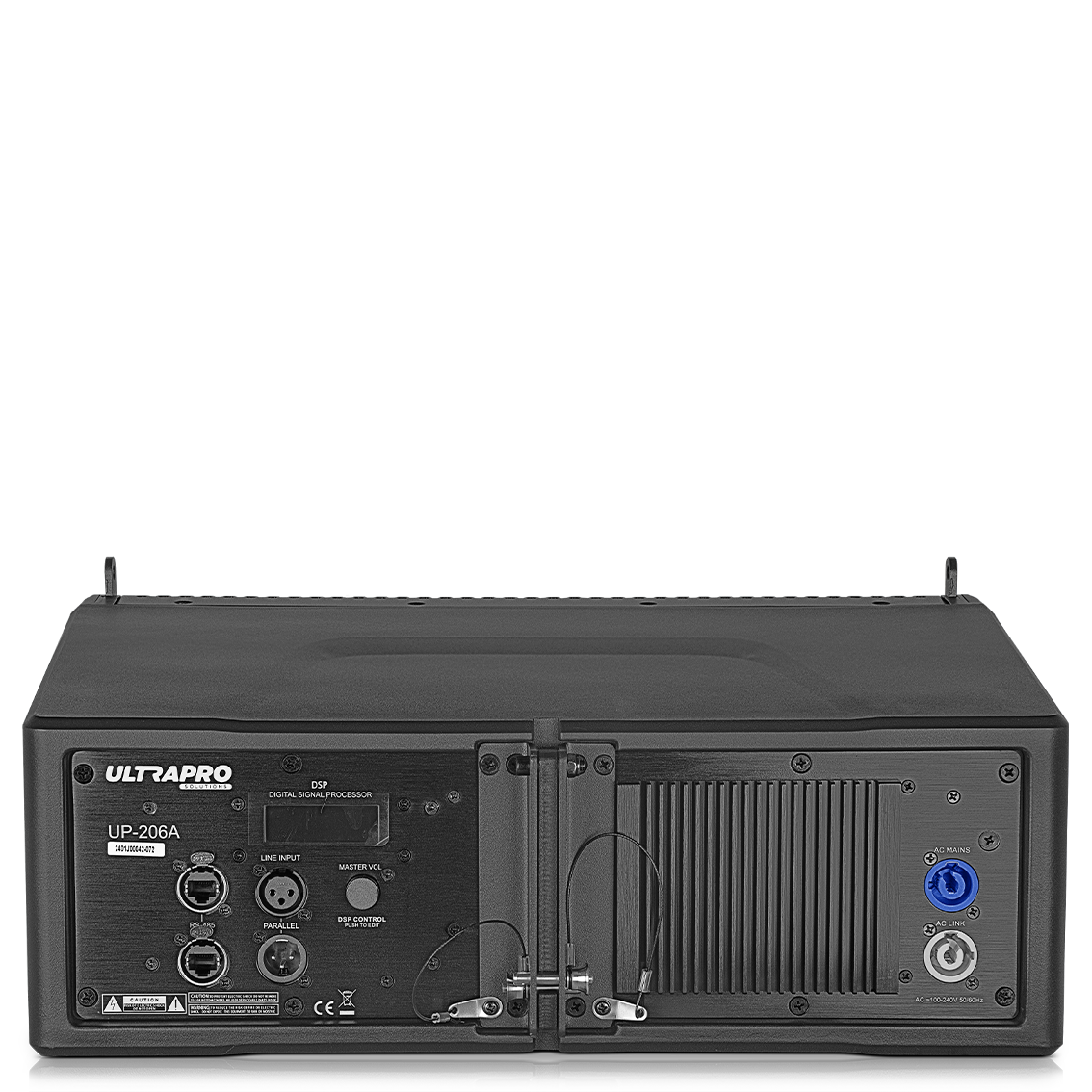

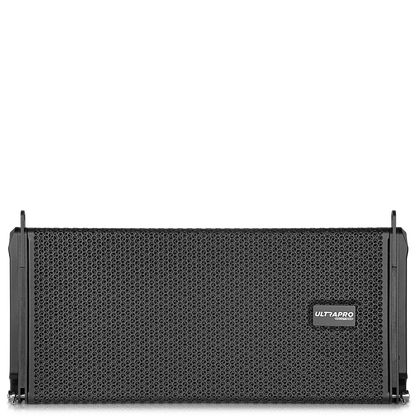

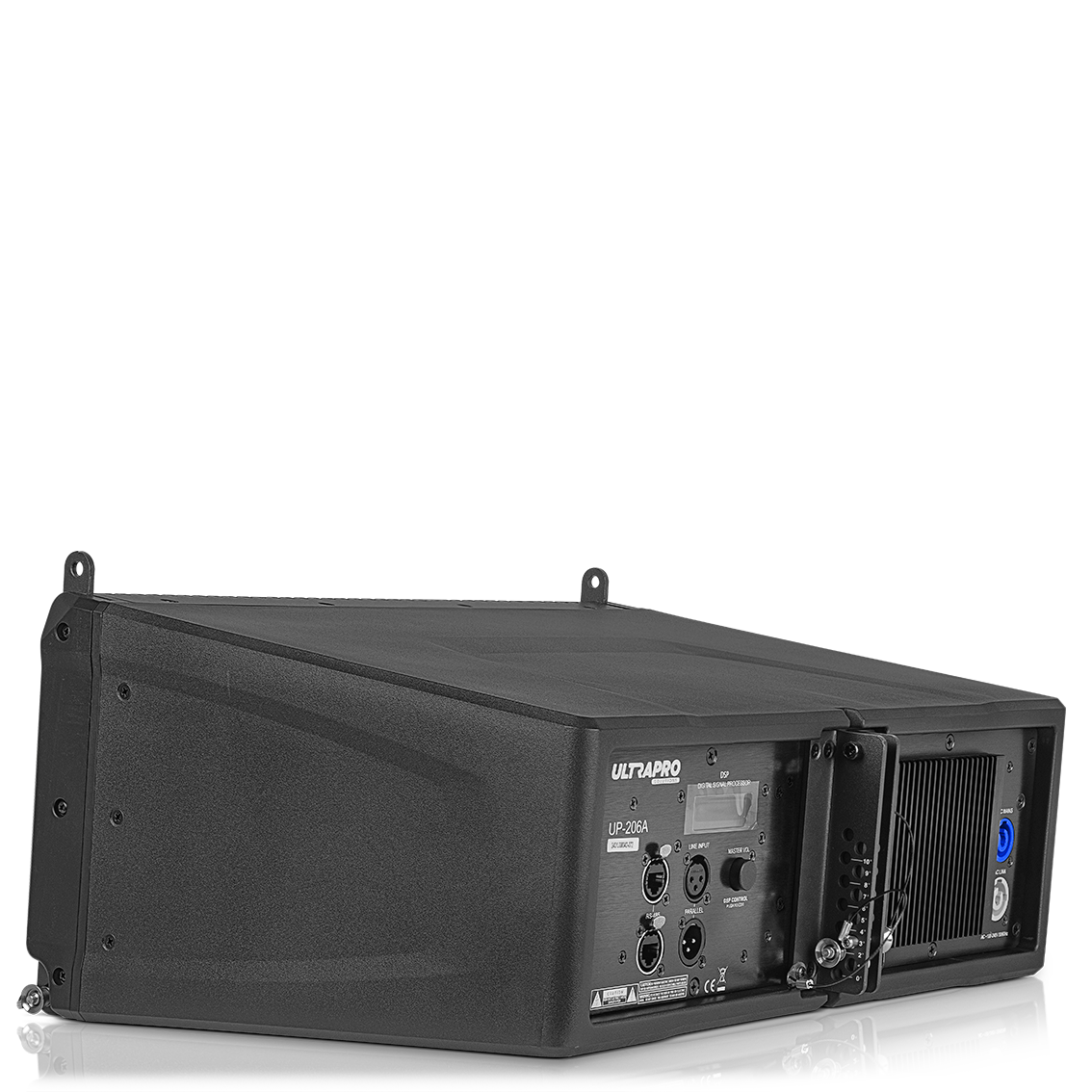

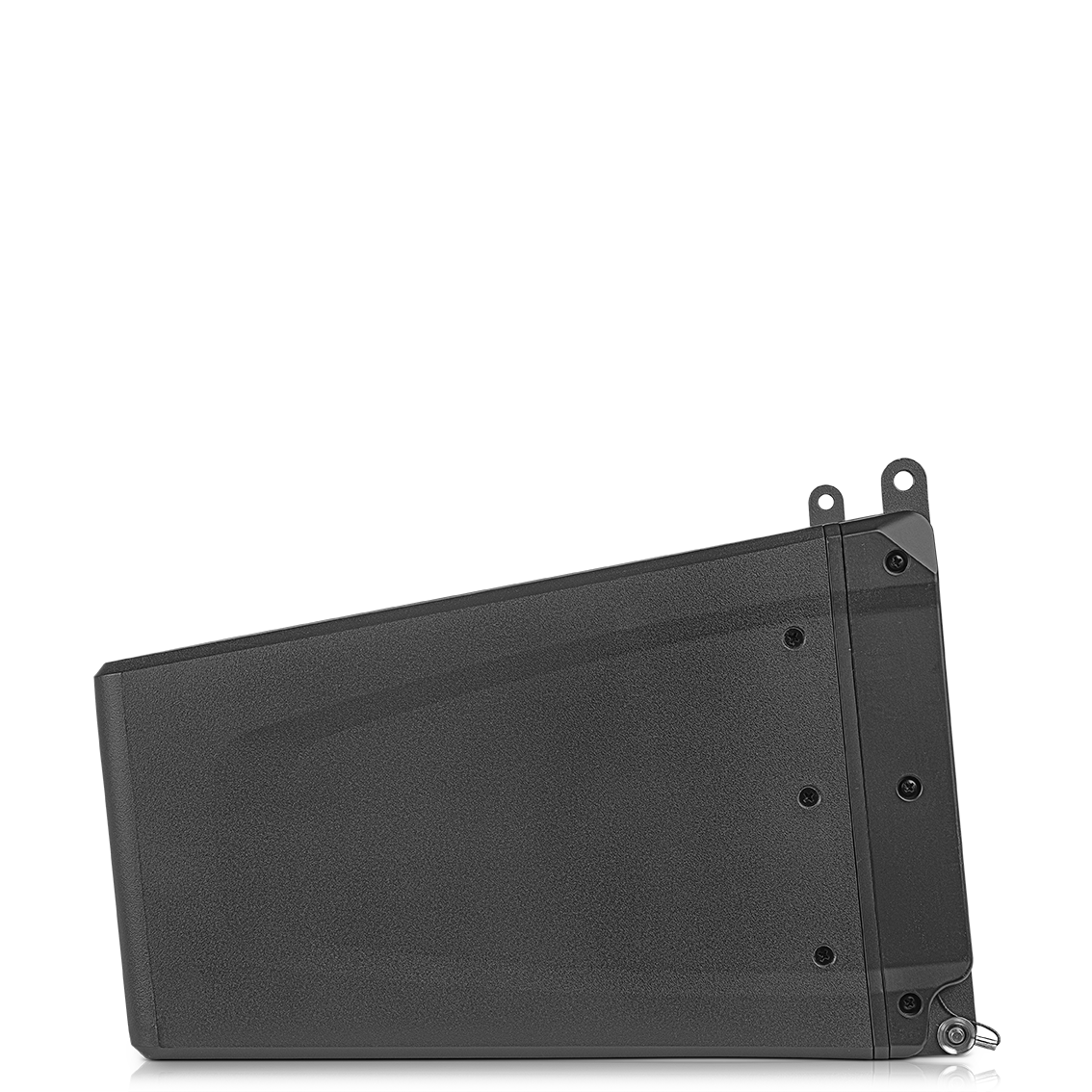

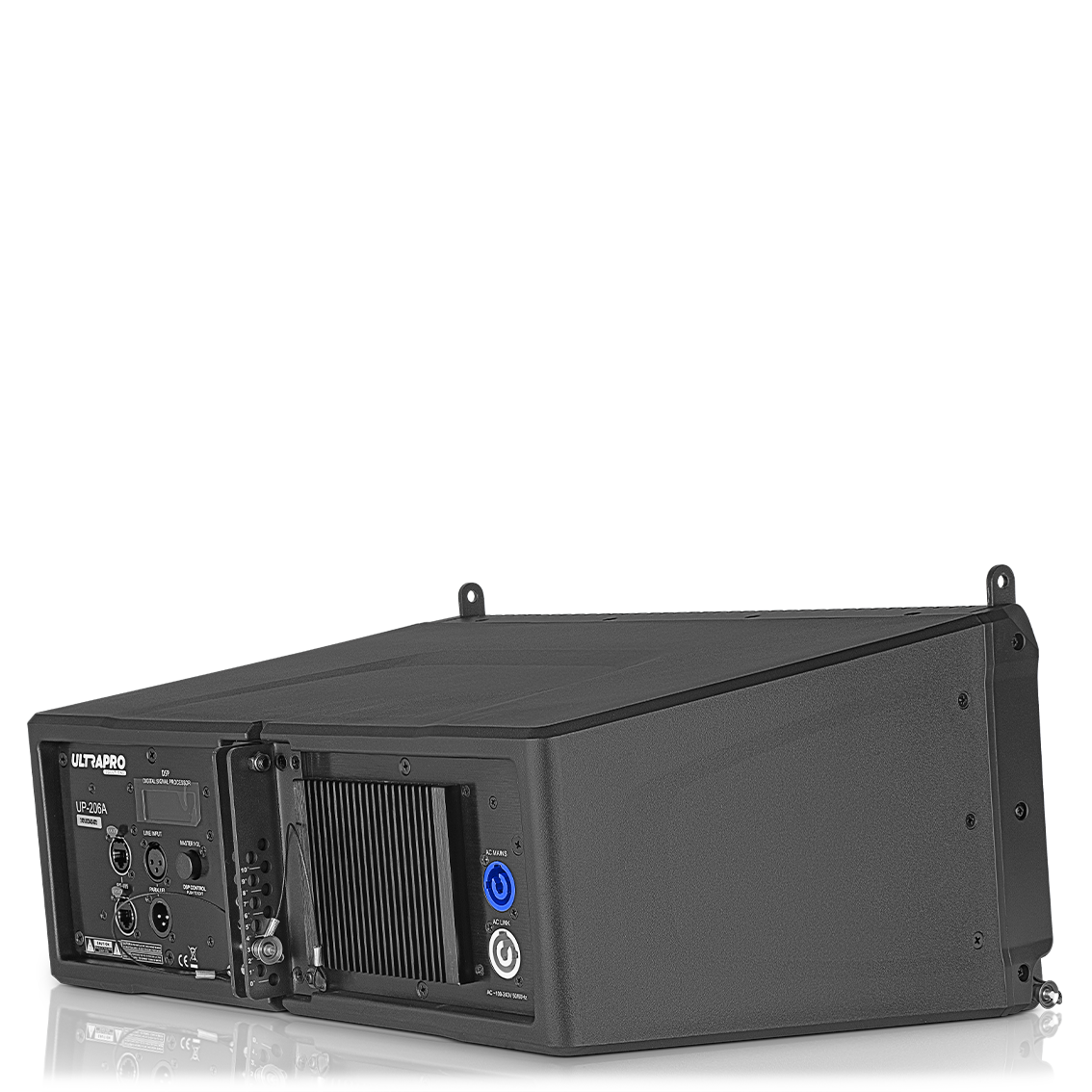

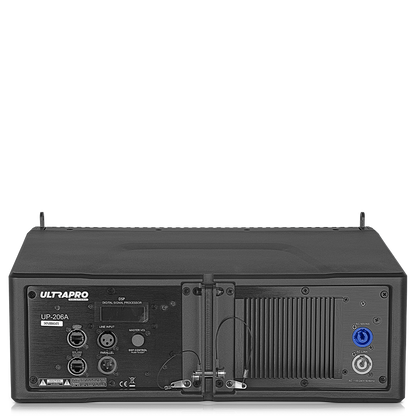

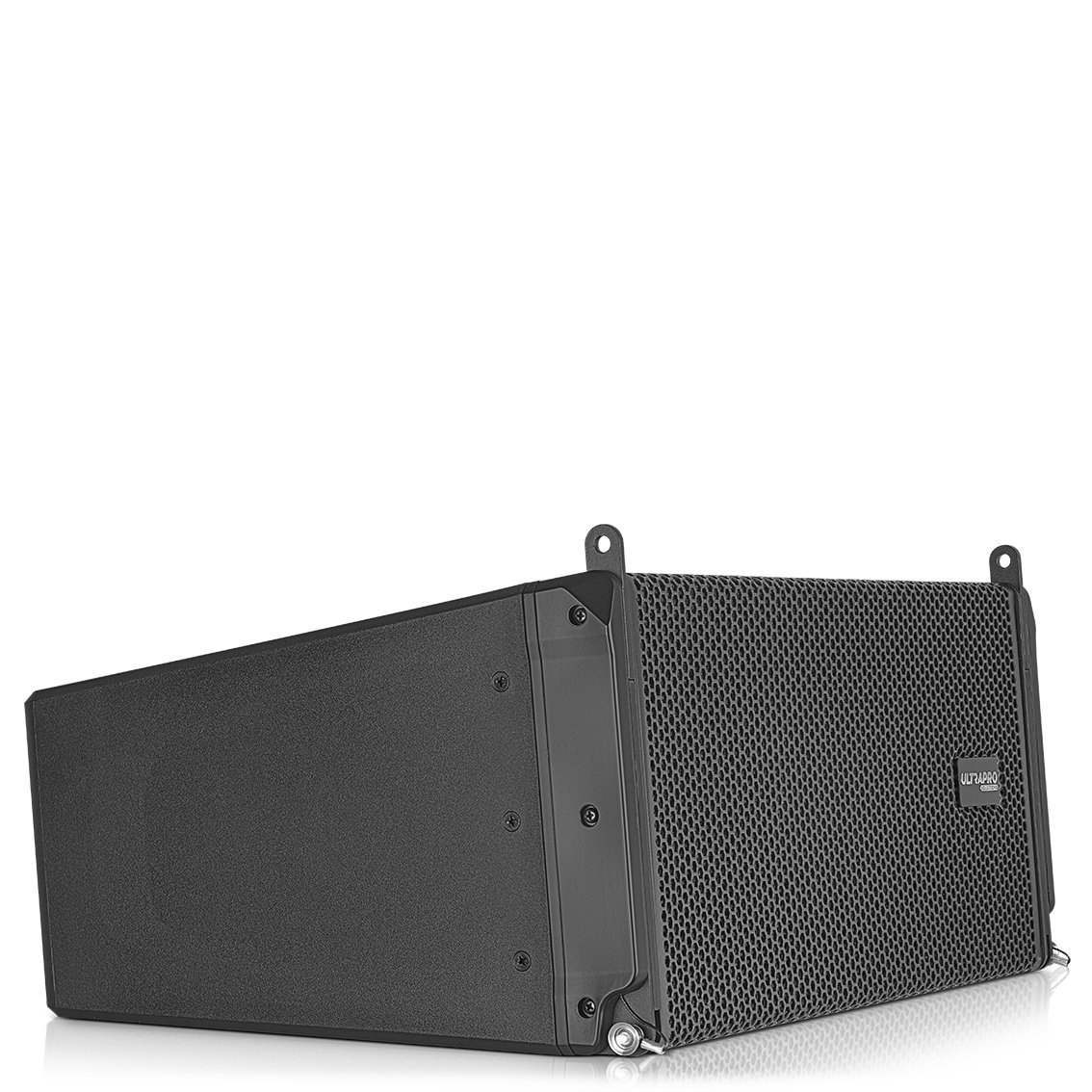

UP-206A
UP-206A
SKU:92-0506
DESCRIPTION
DESCRIPTION
Our active plastic line array speaker is the compact and lightweight solution that delivers superior performance at any event. This full-frequency 2-way speaker stands out for its 70Hz to 20kHz frequency response, providing accurate 100° horizontal and 10° vertical coverage, ideal for filling any space with clear and powerful sound.
The built-in DSP module is the heart of this system, offering a range of advanced features, such as gain, crossover, equalization, delay, limiter and program memory. With pre-set presets, the DSP allows full control of the speaker network via the 485 network interface, ensuring a perfect fit for every situation.
Equipped with 2 x 6.5" ferrite mids and bass and a 1 x 3" compression driver, this speaker delivers an impressive 800W of power and a maximum SPL of 130dB, ensuring robust and high-quality sound.
Featuring a robust PP composite design, this speaker is easy to transport thanks to its small size and light weight of 15kg. Operating at a voltage of 110V - 240V, 50/60Hz, it is the perfect choice for those looking for a combination of portability, power and control in a professional sound system.
F.A.Q.
F.A.Q.
Design | 2-way full-frequency active line array |
Frequency Response | 70Hz - 20kHz |
Components | 100° x 10° (Horizontal y Vertical) |
LF | 2 x 6.5" Ferrite Mids and Bass |
HF | 1 x 3" compression driver |
Amplifier | 800W |
SPL@1M | 130 dB |
Impedance |
4 Ohms |
Input Sensitivity | 0dB |
Material | PP compound |
Operation Power | 110V - 240V, 50/60Hz |
Weight (Product) | 15 kg, 33 lb |
Weight (Shipping) | |
Size (Product) | 47 x 21 x 34 cm |
Size (Shipping) | |
Warranty | 6 Months |
