Processor SMP-48D

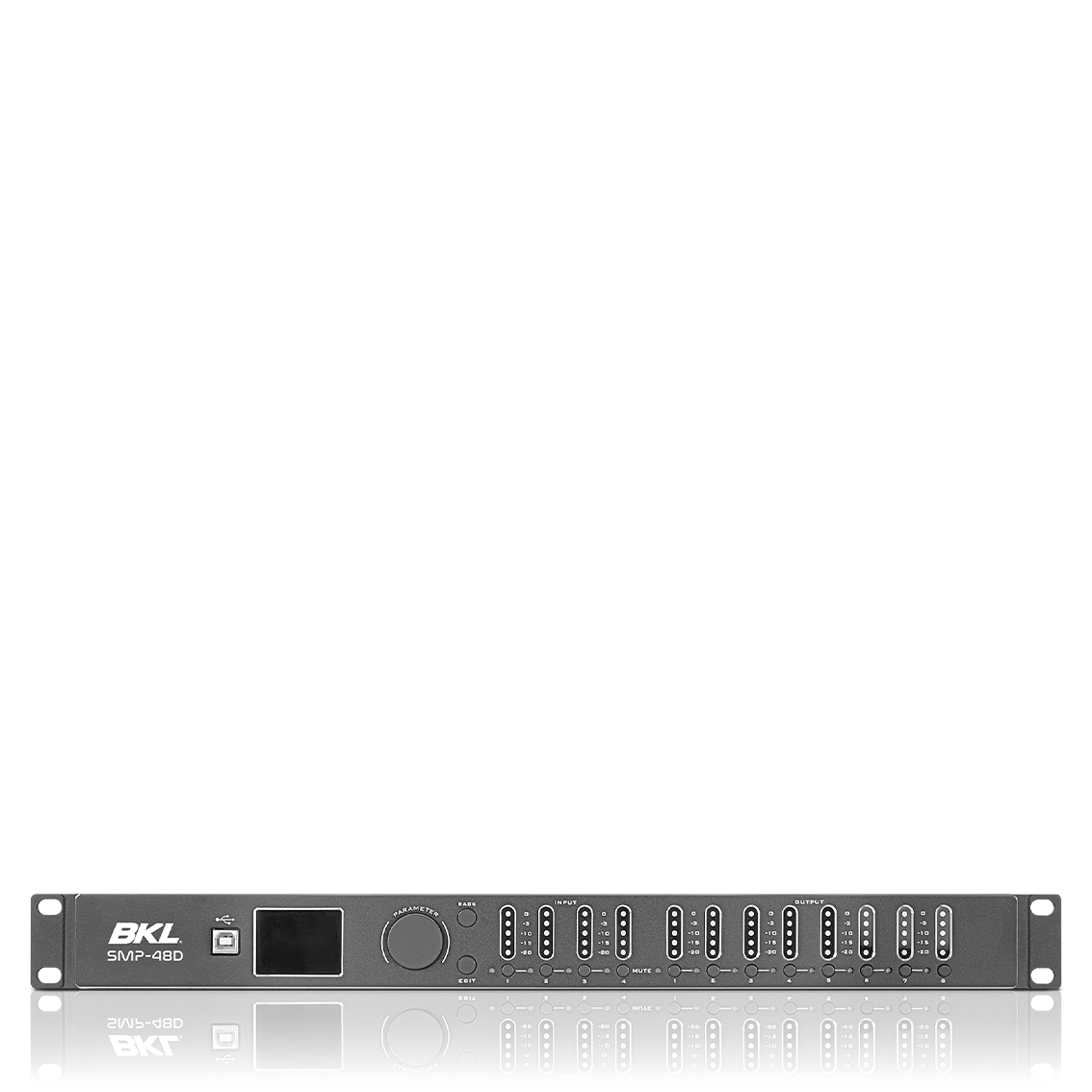

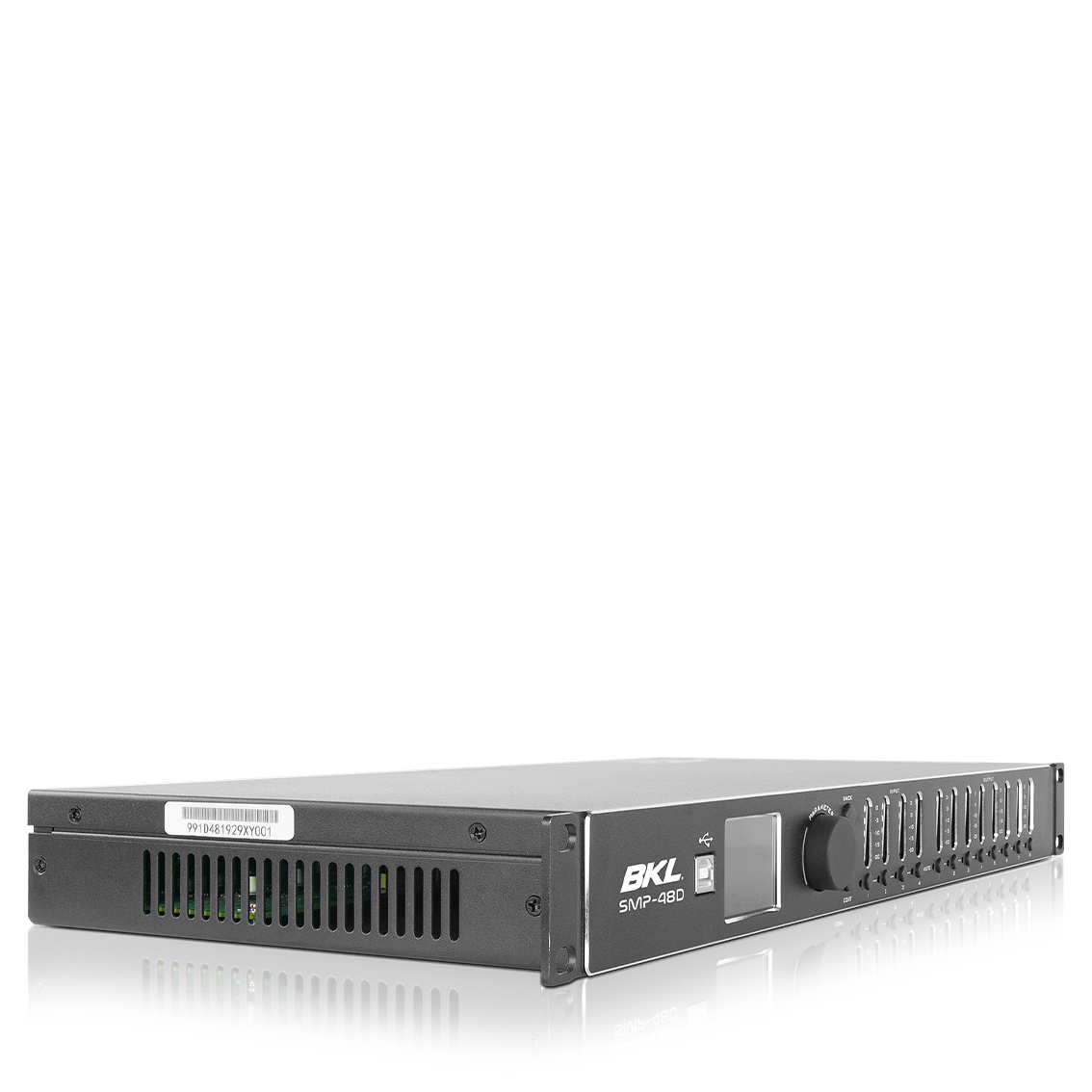

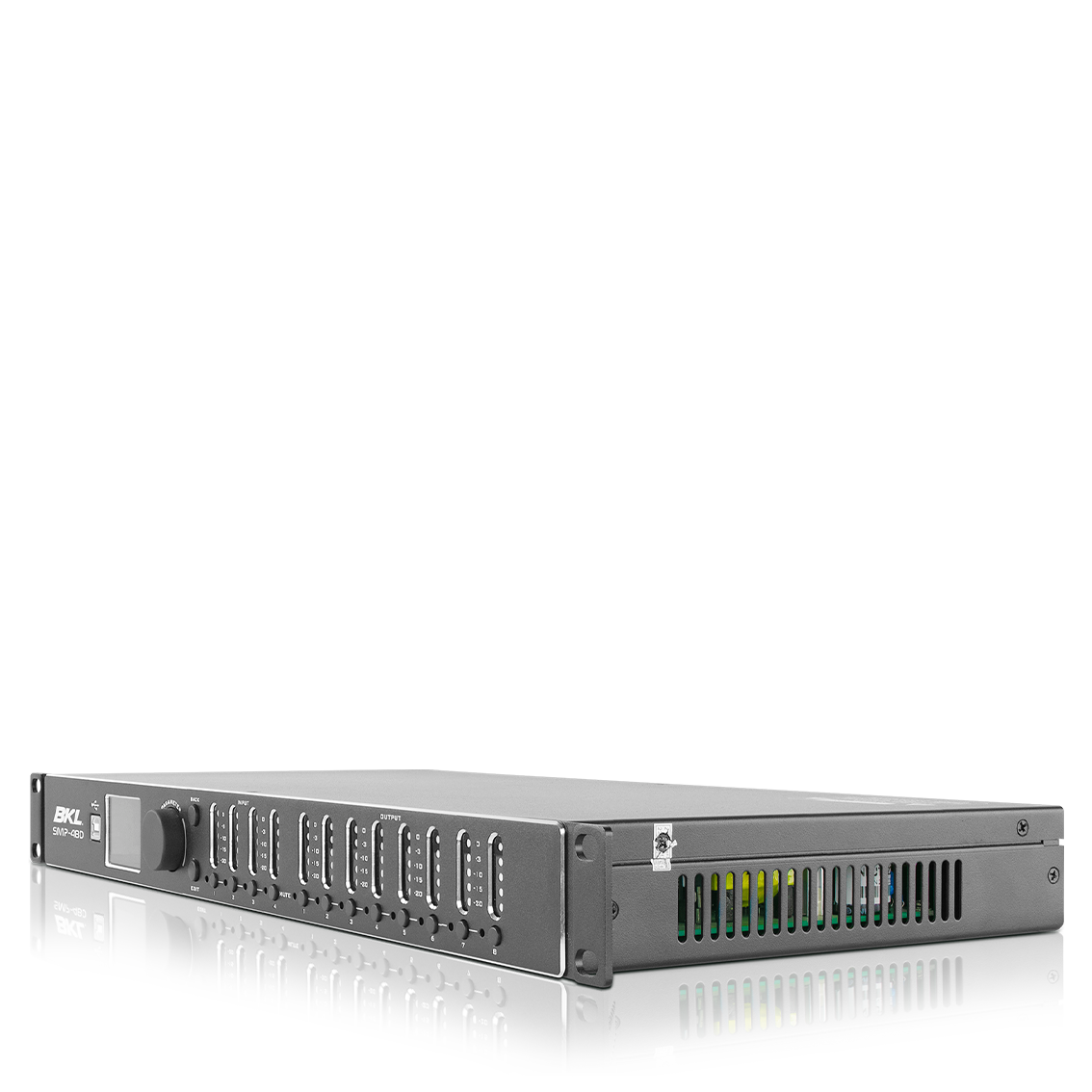

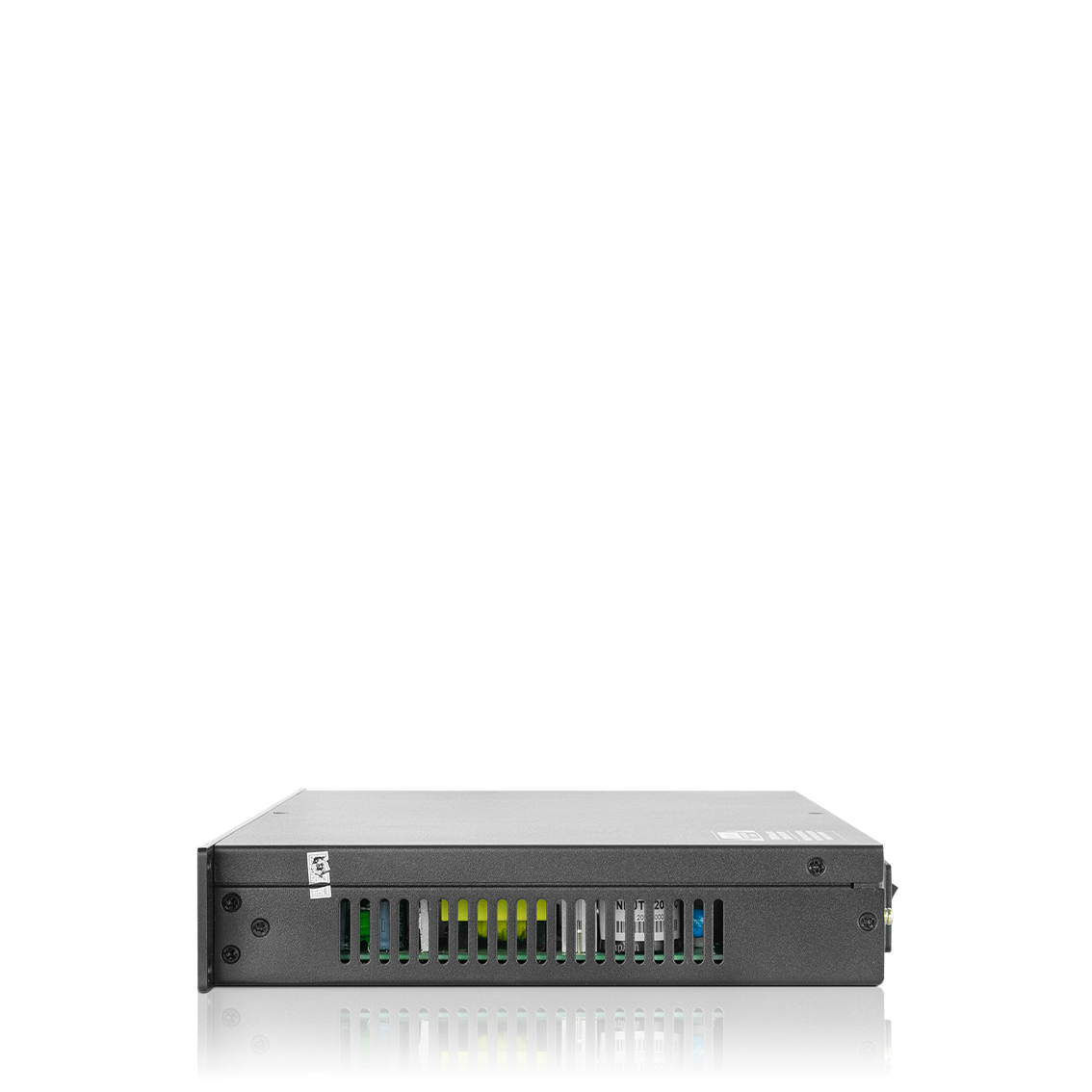

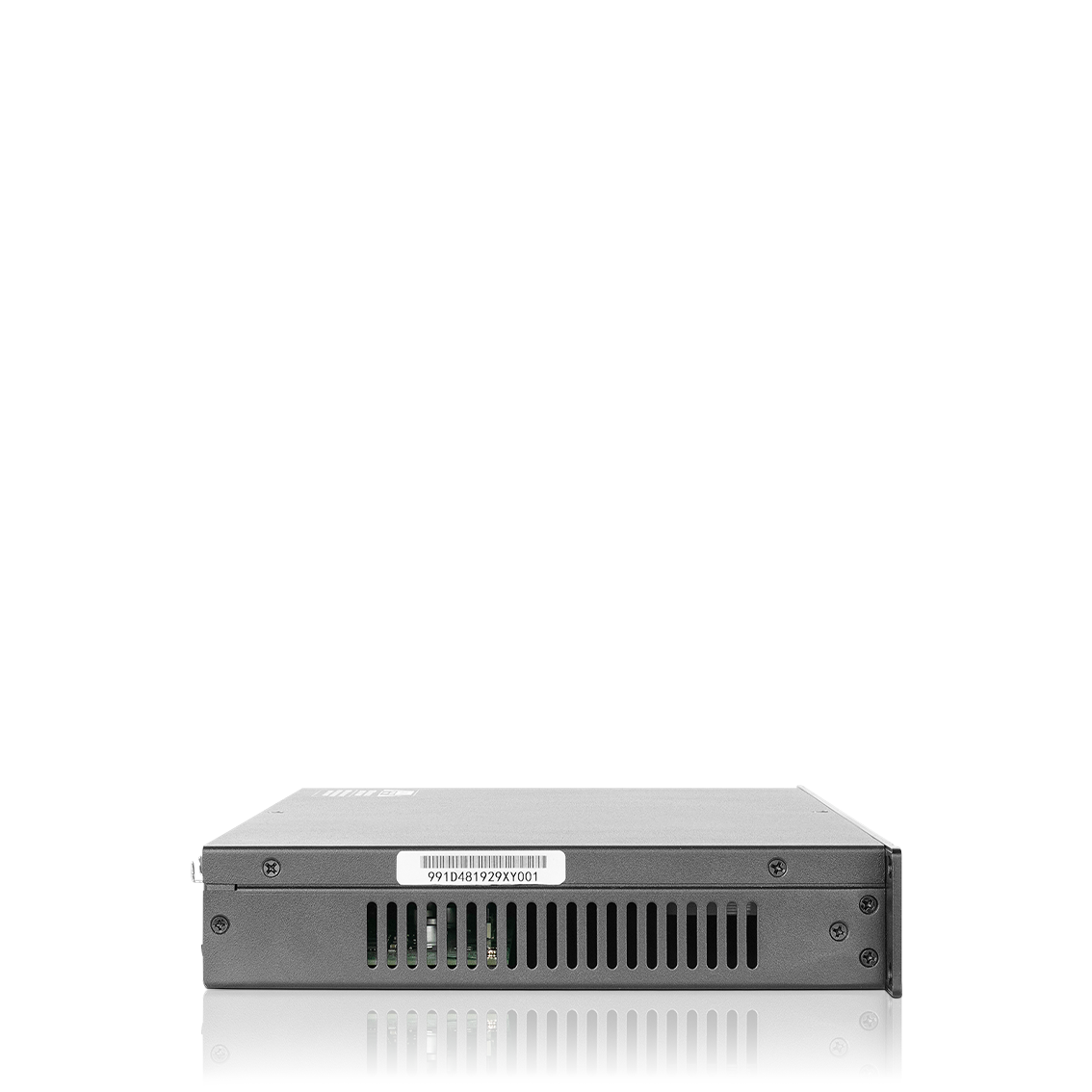

MATRIX SMP-48D Digital Audio Processor

Our new MATRIX line of Digital Audio Processors is the ultimate solution for optimizing any sound system, leveraging the latest advancements in audio processing technology.

The SMP-48D model features 4 inputs and 8 outputs with integrated Dante communication, providing unmatched flexibility and connectivity for professional audio setups.

Key Features:

🔵 Integrated Dante Protocol

• The SMP-48D offers seamless Dante communication, enabling remote signal management and routing through its RJ45 port for advanced networked audio solutions.

🔵 High-Performance DSP Technology

• Powered by a high-performance DSP chip, the processor delivers 24-bit/48 kHz audio processing for precise, high-quality sound.
• Equipped with high-performance A/D and D/A converters to ensure superior audio fidelity.

🔵 User-Friendly Interface

• Built-in interactive TFT LCD display with a GUI interface for fast and intuitive adjustments.
• Features an encoder-style control for easy navigation and configuration.

🔵 FIR Filter Support

• Capable of loading FIR filter coefficients via a text file, supporting up to 512 coefficients for crystal-clear sound reproduction. (Note: Coefficients are user-provided.)

🔵 Input Channel Processing

• Includes mute, gain control, delay (0–180 ms), a 31-band graphic equalizer, and both expander and compressor functionalities to fine-tune your audio inputs.

🔵 Output Channel Processing

• Features delay (0–60 ms), crossover filters (Butterworth, Bessel, Linkwitz-Riley with slopes of 12dB/24dB/36dB/48dB), 15-band parametric EQ, gain control, and limiter for comprehensive output customization.
• Incorporates FIR filter compatibility for precise crossover and sound management.

🔵 Comprehensive Software Control

• Manage settings via USB or RJ45 connection with dedicated PC control software.
• Software enables multiple device management, channel linking, and adjustment replication.
• Save, recall, import, and export multiple scene groups for efficient system setup.

🔵 Flexible Connectivity

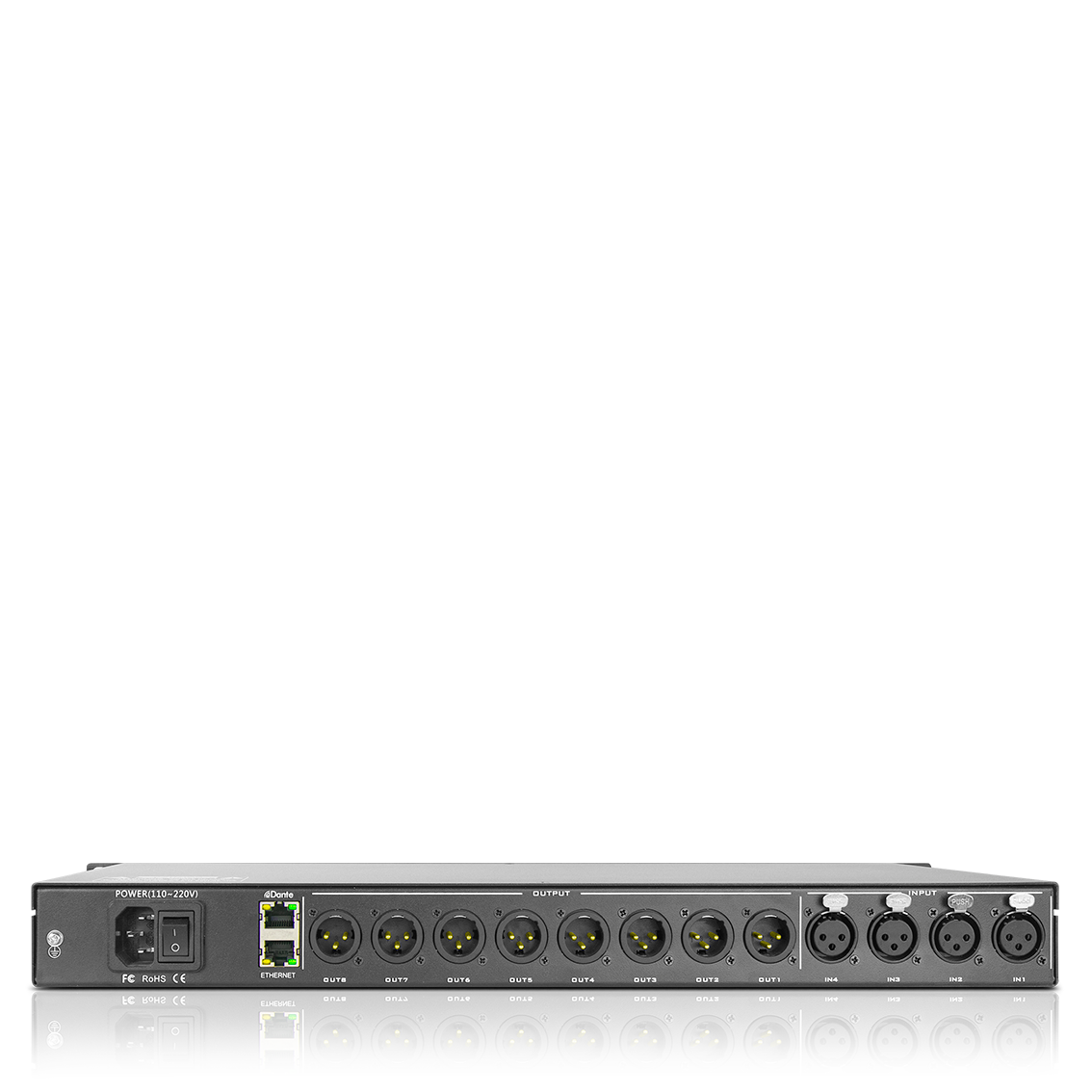

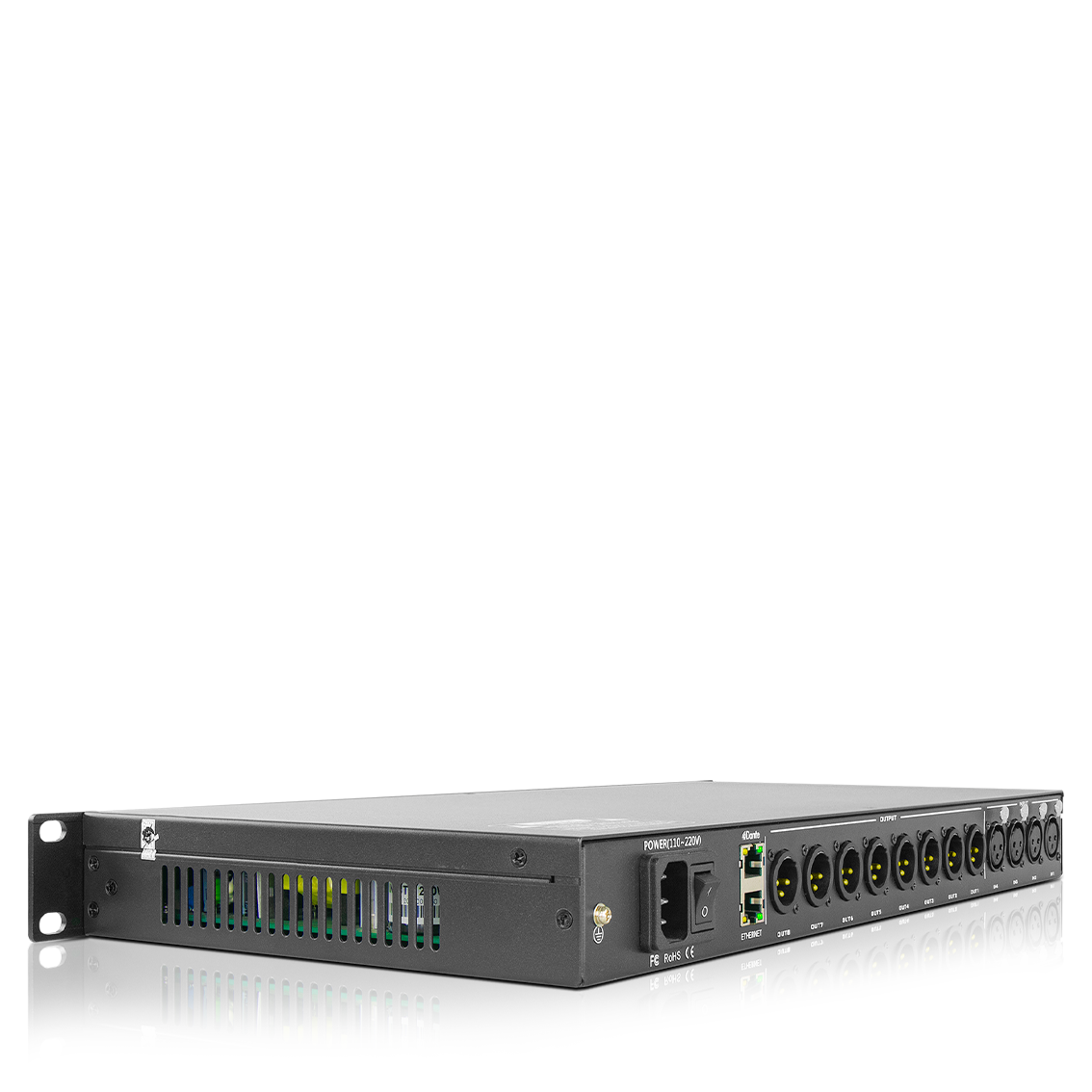

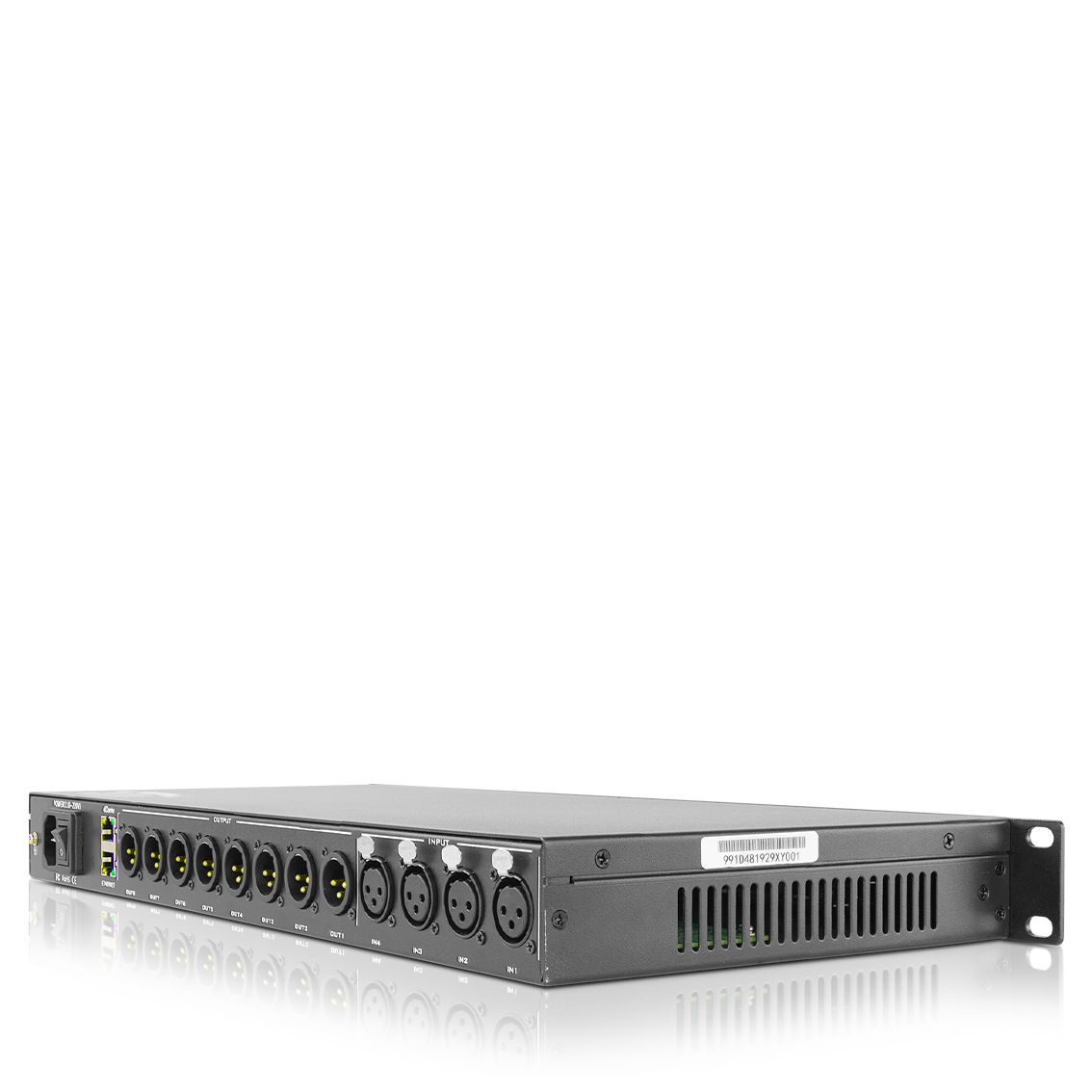

• Analog interface with 4 balanced inputs and 8 balanced outputs for robust system integration.
• Dante input (optional) expands connectivity and control options.

Why Choose the MATRIX SMP-48D?

The MATRIX SMP-48D is designed to meet the demands of professional audio engineers, delivering precise control, advanced processing, and versatile connectivity. Whether you're setting up a high-performance PA system or managing complex sound configurations, the SMP-48D ensures exceptional performance and reliability for any application.
