Processor SMP-26

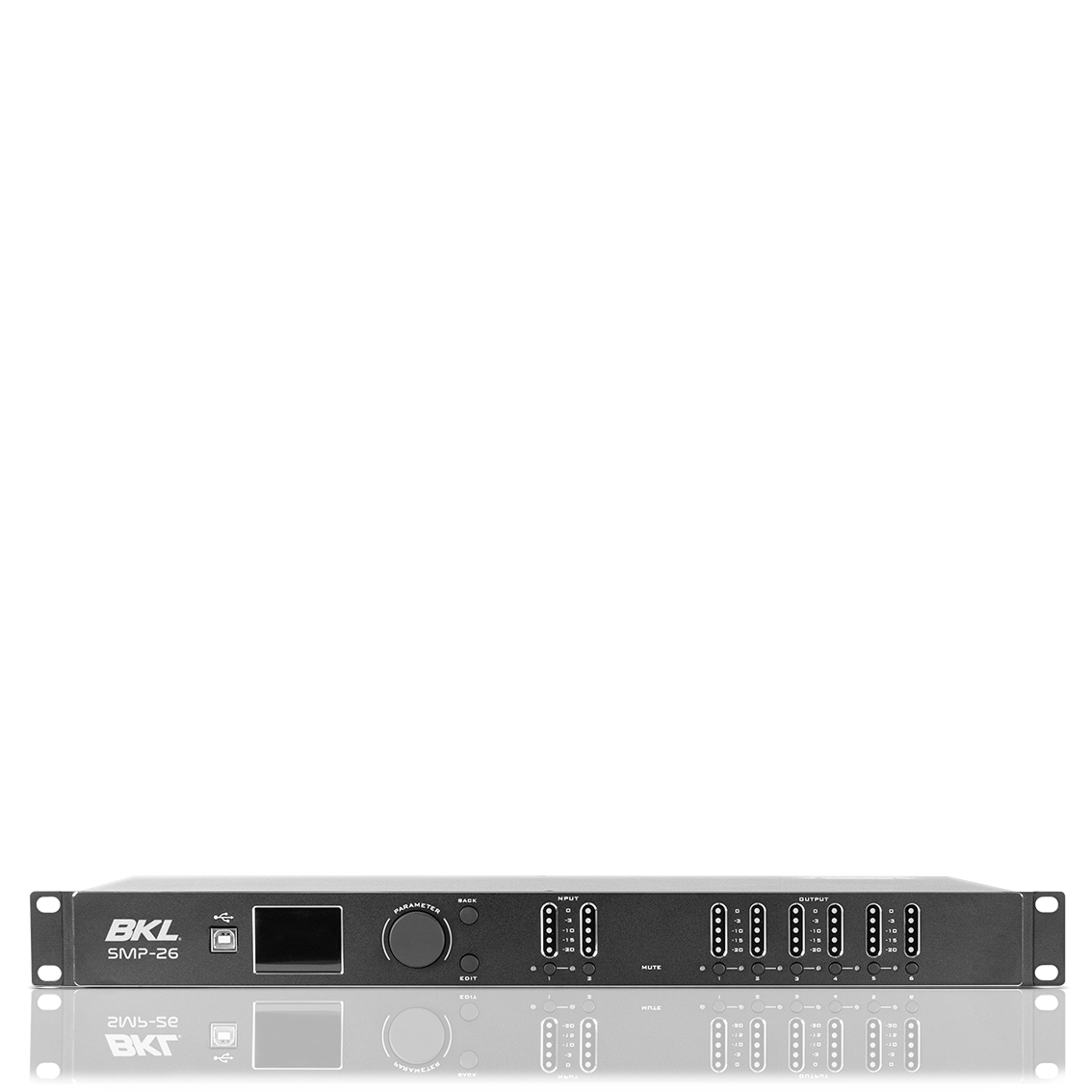

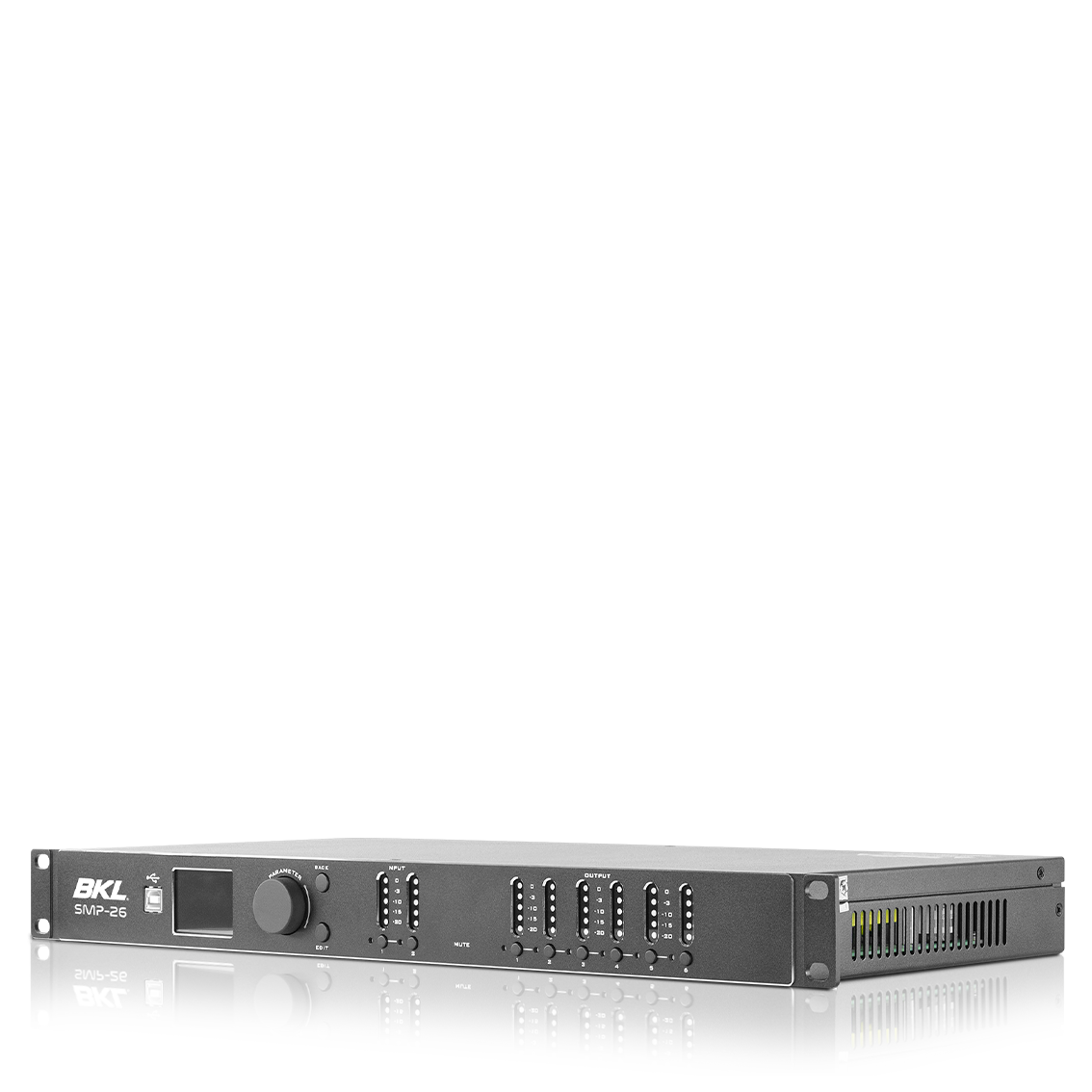

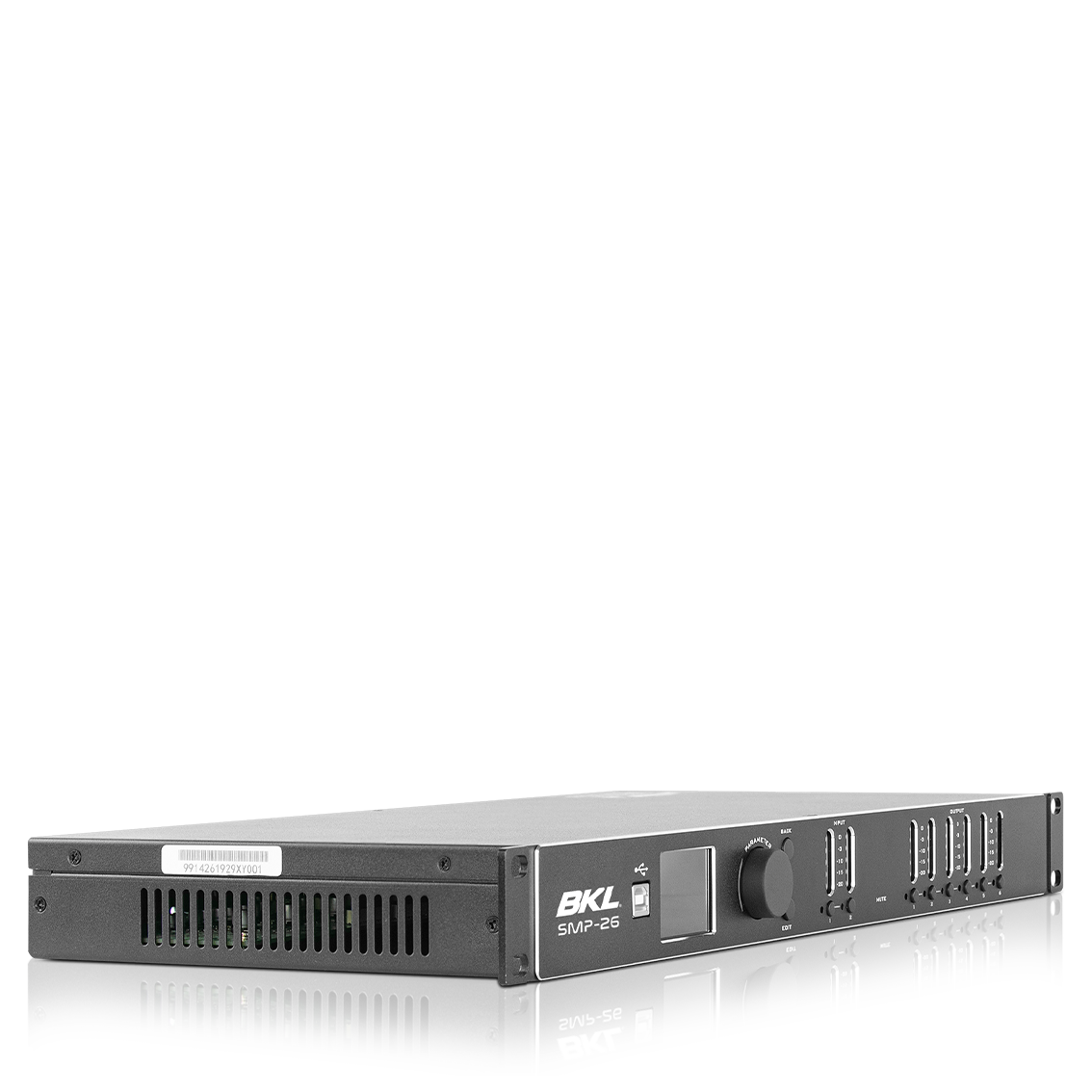

MATRIX SMP-26 Digital Audio Processor

Our new MATRIX line of Digital Audio Processors is the ultimate tool for optimizing any sound system, utilizing cutting-edge audio processing technology to deliver exceptional performance and versatility.

Key Features:

🔵 Advanced Matrix Configuration

• The SMP-26 model offers 2 inputs and 6 outputs with a fully matrixed configuration, allowing unparalleled routing and flexibility to adapt to your audio system’s needs.

🔵 High-Performance DSP Technology

• Equipped with a high-performance DSP chip for 24-bit/48 kHz processing, ensuring precise and high-quality audio reproduction.
• Includes a high-performance A/D and D/A converter for superior signal integrity.

🔵 User-Friendly Interface

• Built-in interactive TFT LCD display and an intuitive GUI interface for quick adjustments.
• Features an encoder-style control for seamless navigation and configuration.

🔵 FIR Filter Capability

• Supports loading FIR filter coefficients via a text file (up to 512 coefficients), delivering crystal-clear sound reproduction. (Note: Coefficients are user-provided; software does not calculate them.)

🔵 Input Channel Processing

• Includes mute, gain control, delay (0–180 ms), a 31-band graphic equalizer, and both expander and compressor functions for precision sound shaping.

🔵 Output Channel Processing

• Features delay (0–60 ms), crossover filters (Butterworth, Bessel, Linkwitz-Riley with slopes of 12dB/24dB/36dB/48dB), 15-band parametric EQ, gain control, and limiter for complete output management.
• Incorporates FIR filter support for advanced crossover settings.

🔵 PC Control Software

• Manage settings via USB or RJ45 connection with PC control software.
• Software enables the addition and management of multiple devices online, channel linking, and adjustment replication.
• Save, recall, import, and export multiple scene groups for efficient system configuration.

🔵 Dante Connectivity (optional)

• Remote signal management and routing are possible through a Dante controller via the RJ45 port.

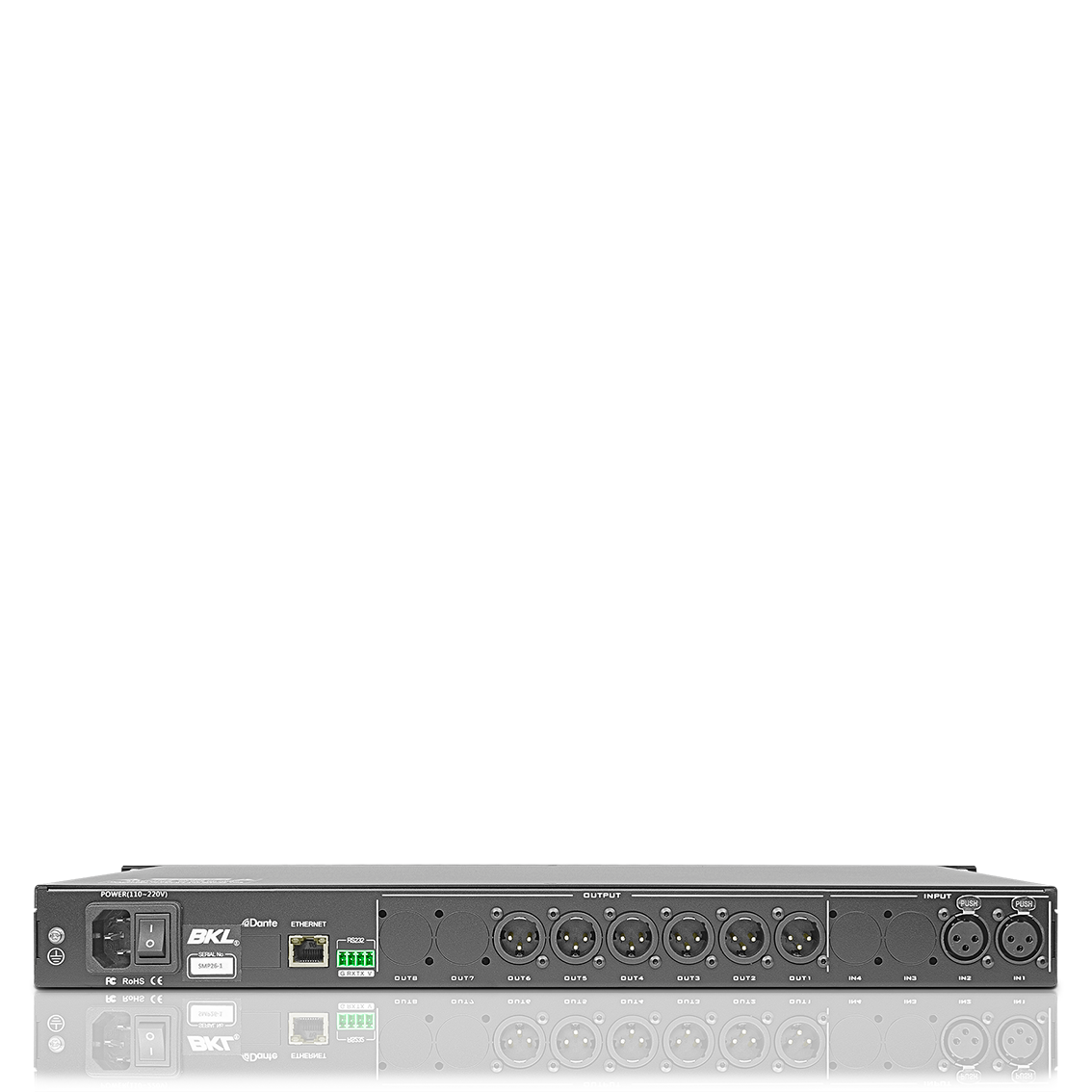

• Includes analog interface with 4 balanced inputs and 8 balanced outputs; optional 4-route Dante input for advanced networking capabilities.

Why Choose the MATRIX SMP-26?

Whether you're fine-tuning a professional PA system or managing complex signal routing, the SMP-26 ensures precision, control, and clarity. With its powerful processing, intuitive interface, and flexible connectivity, it’s the ideal solution for demanding audio applications.
